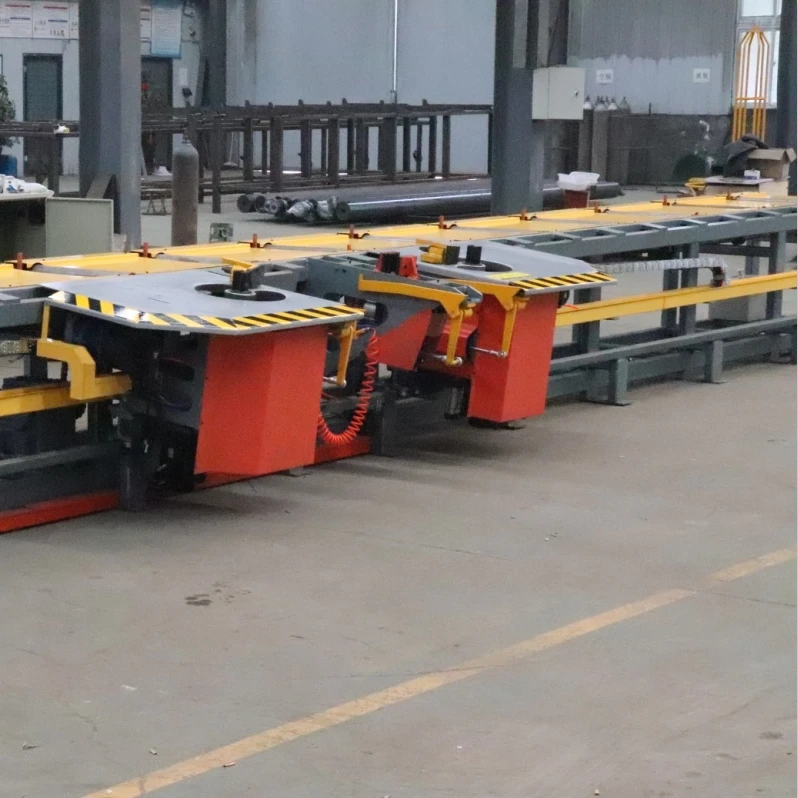

Anti-suab sib kis tau muab cov rooj uas tsis sib xws muab cov lus tiv thaiv kev nyab xeeb thiab ib puag ncig. Cov tshuab loj adints tsis-rov qab ua ke ua ke ua ke rau qhov chaw raug thiab tsis muaj suab nrov. Loj Stainless Hlau Vaj Huam Sib Luag Tsim Ua Rau Cov Hlau Nkhaus Hlau Bar Ntau Ruaj. Tus tsim thev naus laus zis ntawm kev siv tshuab tsis siv neeg lub sijhawm txuag lub sijhawm thiab kev rau siab. Lub Crank hom steel bar nqa kev nqa thiab hloov tsheb me me yog teeb tsa kom muaj qhov yooj yim tshaj plaws rau tus neeg teb xov tooj ua haujlwm. Inclined lub ntsej muag qauv, ua chaw thau khoom thiab thauj khoom lag luam yooj yim thiab muaj kev nyab xeeb.
Kev tsis muaj
|
Dabtsi yog khoov txoj kab uas hla |
10 hli |
12mm |
14mm |
16 hli |
18 hli |
20mm |
22 hli |
25mm |
28mm |
32mm |
40 hli |
50 hli |
|||
|
Dab tsi yog khoov ntau |
6 |
6 |
5 |
5 |
4 |
3 |
3 |
2 |
1 |
1 |
1 |
1 |
|||
|
Angular Dabtsi Yog Khoov Ntau |
48 degree ~ 72 degree / s |
||||||||||||||
|
Tsiv qhov ceev ntawm lub tshuab dabtsi yog khoov |
0.5~1m/s |
||||||||||||||
|
Kev pab fais fab |
380v 50Hz |
||||||||||||||
|
Tag Nrho Fais Fab |
27.7kw |
||||||||||||||
|
Kev Siv Hluav Taws Xob |
12kW / h |
||||||||||||||
|
Ntau Tshaj Dabtsi Yog Khoov Daws |
Upbend: {0 ~ 180 degree |
Yam tsawg kawg nkaus curved ntug loj |
Φ12mm |
||||||||||||
|
Upbend: {0 ~ {-120 degree |
Φ1100mm |
||||||||||||||
|
Yam tsawg kawg nkaus ntawm kev khoov duav |
80mm |
Qhov siab tshaj plaws nkhaus ntug loj |
10000mm |
||||||||||||
|
Qhov tsawg tshaj plaws yog khoov bar ntev |
1250 hli |
||||||||||||||
|
Compound khoov (nce lossis nqis) |
Φ10 ~ 32mm |
Khoov |
Φ36 ~ 50 hli |
||||||||||||
Daim duab
Cov txheej txheem kev ua haujlwm
Ua ntej, tshuaj xyuas cov khoom siv
Ua ntej pib ua lag luam cov rebar khoov chaw, xyuas cov cuab yeej:
1. Tshawb xyuas seb puas muaj lub hwj huam cable yog txuas nrog thiab seb puas muaj cable hnav lossis tawg.
2. Tshawb xyuas seb txhua ntu ntawm cov khoom siv tiav thiab ruaj, tshwj xeeb tshaj yog cov khoov thiab khoom siv dabtsi yog cov cuab yeej.
3. Tshuaj xyuas seb qhov chaw ua haujlwm ntawm cov cuab yeej ua raws li qhov yuav tsum tau ua, xws li kub thiab av noo.
Thib ob, npaj cov khoom
Ua ntej pib khoov cov rebar, npaj cov ntaub ntawv hauv qab no:
1. Steel bar raw khoom: Xaiv hom uas tsim nyog thiab ntev ntawm cov hlau bar raws li cov qauv yuav tsum tau ua.
2. Cov ntaub ntawv ib pab: xws li fixture, txhawb nqa ncej, thiab lwm yam.
Thib Peb, Chaw Thau Khoom Hlau
Cov khoom siv hlau bar raw yog muab tso rau ntawm kev ua haujlwm ntawm cov khoom lag luam ntawm cov hlau, thiab cov fixture tsim nyog raug xaiv los txhim kho cov hlau bar ntawm kev ua haujlwm.
